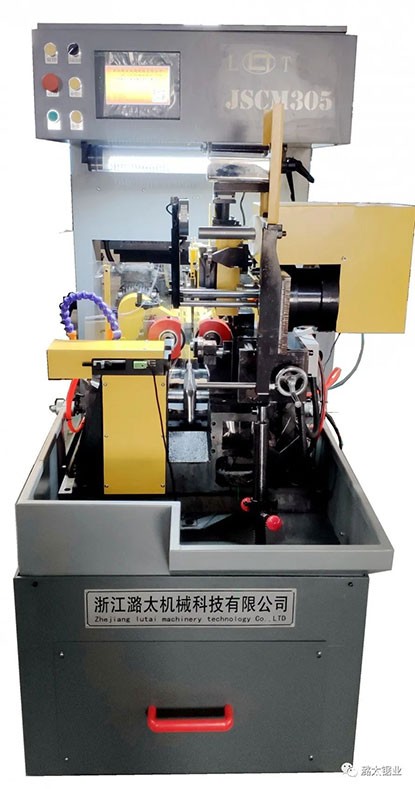

機械手雙側磨齒機 JSCM305
時間：2024-04-11 11:16:32點擊數：
1411次
機器特點
◆本機是對合金圓鋸片雙側研磨的專用自動化設備。
◆磨削主體底部采用一體式加強鑄件底板，穩定性好。
◆采用機械手上下鋸片，操作簡潔方便，一人可操作10臺以上。
◆進退刀調整方便，可任意設定砂輪行程過程中進刀退刀組合模式。
◆電機撥齒**穩定。
◆砂輪磨削有自動補償功能，砂輪磨損自動補償。
Machine features
1. This machine is a specialized automated equipment for double-sided grinding of alloy circular saw blades.
2. The bottom of the grinding body adopts an integrated reinforced casting bottom plate, which has good stability.
3. Using a robotic arm to move the saw blade up and down, the operation is simple and convenient, and one person can operate more than 10 machines.
4. The adjustment of the feed and retreat knives is convenient, and the combination mode of feed and retreat knives during the grinding wheel stroke process can be set arbitrarily.
5. The motor teeth are precise and stable.
6. The grinding wheel has an automatic compensation function, and the grinding wheel wear is automatically compensated.
技術參數Technical parameter
◆鋸片直徑Blade diameter φ110-φ305mm
◆齒距范圍Range of tooth pitch 7—48mm
◆前角角度Front angle 0°~25°
◆砂輪規格Grinding wheel specifications φ100×φ20mm
◆砂輪行程Grinding wheel stroke 0—28mm
◆砂輪轉速Grinding wheel speed 5600r/min
◆工作氣壓Operating air pressure ≥0.45MPa
◆電源電壓Supply voltage AC380V50Hz
◆功 率Power 2.2KW
◆重 量Weight 930kg
◆機床尺寸Machine size 1440×860×1770mm
