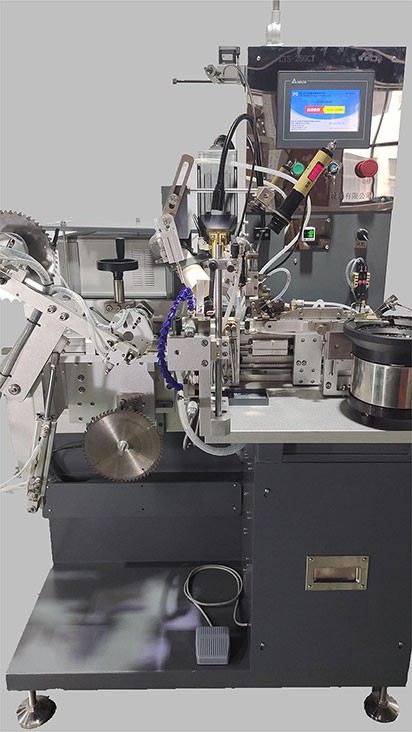

自動焊齒機 LTS-250CT
時間：2024-04-11 11:08:35點擊數：
1364次
機器特點
◆本機是用于合金圓鋸片鋸齒自動焊接專用機械。
◆支持中焊、左右焊、隔齒焊、超薄片等功能。
◆采用機械手自動上下鋸片，一人可操作10臺以上。
◆全自動選齒、送料、焊接、回火，也可根據客戶要求定制。
◆配有自動除煙機便于排除焊煙。
◆氣爪采用雙頭結構直送焊接部位，利于小合金焊接及設備保養。
Machine features
1. This machine is a specialized machine for automatic welding of alloy circular saw blades.
2. Support functions such as middle welding, left and right welding, gear separation welding, ultra-thin film, etc.
3. Using a robotic arm to automatically move up and down the saw blade, one person can operate more than 10 machines.
4. Fully automatic gear selection, feeding, welding, tempering, and customization according to customer requirements.
5. Equipped with an automatic smoke remover for easy removal of welding fumes.
6. The air claw adopts a double headed structure to directly feed the welding area, which is conducive to small alloy welding and equipment maintenance.
技術參數Technical parameter
◆鋸片直徑Blade diameter φ100-φ255mm
◆焊接效率Welding efficiency 500-750T/hour
◆合金長度Alloy length 3.5-10mm
◆合金寬度Alloy width 1.5-6.5mm
◆合金厚度Alloy thickness 1.5-3.5mm
◆焊接精度Welding accuracy ≤0.08mm
◆工作氣壓Operating air pressure ≥0.45MPa
◆工作水壓Working water pressure ≥4kg/cm2
◆電源電壓Supply voltage AC220V 50Hz
◆功 率Power 6.5KW
◆重 量Weight 300kg
◆機床尺寸Machine size 1150×1060×1430mm
